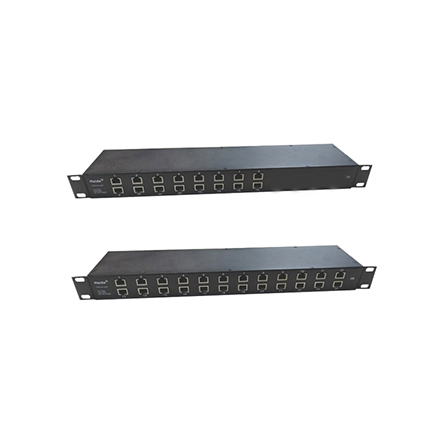

Introduction：
This product is designed according to TIA/EIA568B-2.1 and ISO/IEC11801
standard.The universal RJ45 terminal can connect it to leading end of the
protected equipment conveniently.The high quality and high discharge capability
electirc surge protector as well as the low capacity and ultra-fast recovery
diode matrix structure can provide high energy coarse protection and low energy
fine protection to data line,having favorable frequency transmission property
as well as higher through flow and fast response speed,which can be used in the
integrated wiring of network in office and industry as well as data
communication system with similar usage,such as 1000M Ethernet,ATM,ISDN,VOIP
network,POE system etc.
Technical parameter：
|
Model
|
HD-XNET-16（24）RJ45/E1000
|
|
Nominal working voltage Un
|
36V
|
|
Maximum continuous working voltage Uc
|
48V
|
|
Withstand impulse voltage Uoc
|
5KV
|
|
Impact current Iimp
|
1.5KA
|
|
Nominal discharge current In （8/20μs）
|
2.5KA
|
|
Maximum discharging current
Imax（8/20μs）
|
5KA
|
|
Voltage protection level Up
|
X-X
|
≤130V
|
|
X-G
|
≤600V
|
|
Response time Ta
|
≤1ns
|
|
Operating temperature range Tup
|
-40℃ 至+70℃
|
|
Protection grade
|
IP20
|
|
Insertion loss
|
0.2dB
|
|
Bandwidth fG
|
1000M
|
|
Sheathing material
|
Metal spraying
|
|
Mode of connection
|
series
|
|
Number of guard wire
|
1-8 wire
|
|
External dimension
|
483*94*45mm
|
|
Fixed way
|
1U network cabinets
|
Installation method：
Put an arrester in series
at the leading end of the line interface of the protected equipment.”O(jiān)UT” is
equipment end and “IN” is incoming line end.Connect the arrester ground
terminal and lightning protection ground lead well (suggested earth resistance≤4Ω)
